ZRapid Tech iSLM 100 3D Printer

Printing high-quality parts and functional prototypes using a laser system of fiber laser having a wavelength of 1064 nm, iSLM 100 is an industrial metal 3D printer. It utilizes 200 Watts power for operating recoating system that uses scraper paving for giving a normal build of about 0.03 mm. The printer prints using the powder bed fusion category of 3D printing technology.

Offering a maximum build volume of 110 mm * 110 mm * 110 mm, iSLM 100 enables you to print large parts in one go. The weight of the printer is 10 kilograms so, transferring it from one place to the other is not a problem. Coming to the materials it allows you to print with, the list starts from Stainless Steel, Die Steel, Titanium Alloy, Aluminum Alloy, Co-Cr Alloy, Nickel Alloy, and Cuprum, etc.

The build vat of iSLM 100 is a precision resistor heater in type. You can connect to the printer using Ethernet and TCP/IP. The slicing software that comes compatible with the printer is named 3D Layer, it allows you to transfer files of formats CLI, SLC, and STL. The printer specializes in printing good quality prints with dimensional accuracy in which layers are not that easily visible.

Specification: ZRapid Tech iSLM 100 3D Printer

Model

iSLM 100

Manufacturer

ZRapid Tech

Price Range

$ 100,000 – $ 250,000

Country

China

Availability

Available

Classification

Industrial

Technology

Powder (SLS- SLM…)

Material

Metal

XY accuracy

0.025 mm 0.001 in

Max. build size

110 × 110 × 100 mm4.33 × 4.33 × 3.94 in

Max. build volume

1.21 L

Min. layer thickness

0.02 mm 0.001 in

Weight

10 kg 22.05 lb

Power input

200-240 VAC I 50/60Hz I single phase I 10A

Heated print bed

No

Heated build chamber

No

Automatic calibration

No

Closed frame

Yes

Dual extruder

No

Independent Dual Extruder

No

Full color

No

LCD screen

Yes

Touchscreen

No

On-board camera

No

Mobile app

No

3D scanners

No

CNC mill

No

Electronics 3D printing

No

Laser engraving

No

Conveyor belt

No

Air filter

No

Pellet extruder

No

USB

No

Wifi

No

Bluetooth

No

SD card

No

Ethernet

Yes

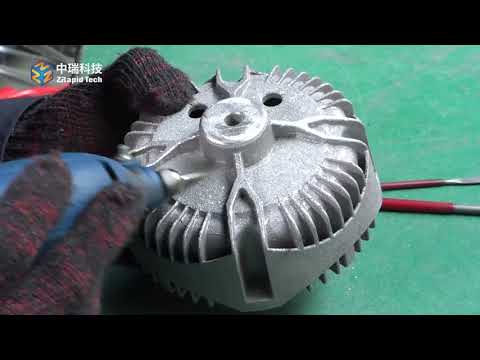

Videos: ZRapid Tech iSLM 100 3D Printer
